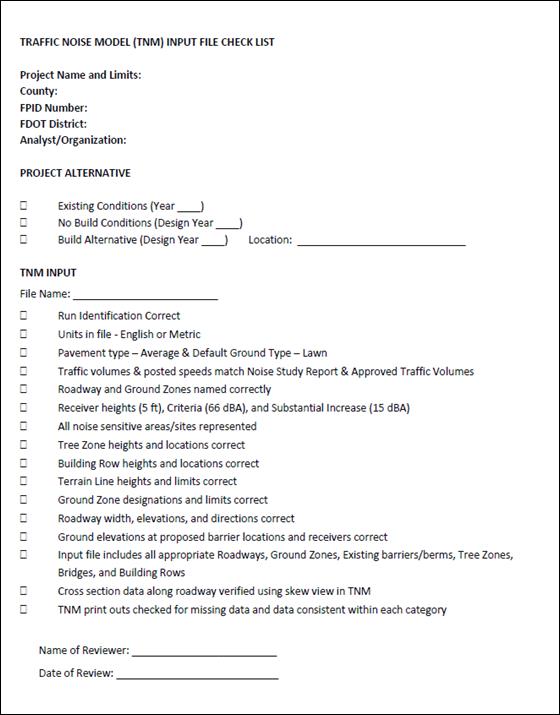

Figure F-1. Florida DOT's TNM Input File QC Checklist. Illustration.
The illustration is a reproduction of the TNM Input File Quality Control (QC) Checklist developed by the Florida Department of Transportation (FDOT). The checklist consists of three sections. In the first section, the reviewer provides information about the project, including the project name and limits, the county, a project identification number, the FDOT District, and the analyst/organization that created the TNM input file. The second section contains three checkboxes that indicate whether the TNM input file for which the review was performed is for Existing conditions, Design Year No-Build conditions, or Design Year Build Conditions. The third section includes a space for the reviewer to enter the name of the TNM input file. The third section also contains 16 checkboxes to be completed during the review of the TNM input file, including:
The checklist also includes a place for the name of the reviewer of the TNM file and the date that the review was performed.
Figure F-1. Florida DOT's TNM Input File QC Checklist
Source: Florida Department of Transportation, “Traffic Noise Modeling and Analysis Practitioners Handbook: Appendix C,” Environmental Management Office, May 5, 2015. Available at: http://www.dot.state.fl.us/emo/pubs/Traffic%20Noise%20Modeling%20and%20Analysis%20Practitioners%20Handbook.pdf
