This appendix presents example comparisons between the simulated monthly rutting calculations and the AASHTOWare® Pavement ME Design software calculations. The intent is to demonstrate that the simulated calculation approach produces results that are almost identical to the software results on various pavement structures (LTPP SPS-1 and SPS-5 sections in Florida) and with different local calibration factors. The literature review indicated that the previous calibration efforts had found the calibration factors to be within the ranges in table 49. These ranges were used to change the calibration factors one by one and observe the simulated rutting calculations compared to the Pavement ME software results.
Table 49. Range of the calibration factors reported in the literature.
Statistic | HMA Rutting βr1 |
HMA Rutting βr2 |
HMA Rutting βr3 |
Base Rutting βGB |
Subgrade Rutting βSG |
---|---|---|---|---|---|
Average | 1.7757 | 1.0445 | 0.9273 | 0.4039 | 0.4569 |
Range | 0.51 to 7 | 1 to 1.15 | 0.7 to 1.1 | 0.0 to 1.5803 | 0.0 to 1.38 |
A handful of these comparisons have been demonstrated in figure 43 through figure 53. In these figures, the solid line represents the rut depth values calculated using the MEPDG software as a function of pavement age, and dashed lines represent the simulated values for the same pavement sections with the same calibration factors. These figures show that overall, the simulated process is successfully estimating the rutting progression trend very similar to the Pavement ME software. While there are some intermediate decrements in rutting values simulated within each month, the total accumulated rutting at the end of each month is very close to the software output. The reason for the intermediate decrements (which do not comply with the theory of rutting accumulation) is the assumptions made for the simulation, which may not be inherently correct. One of those assumptions is that traffic and rutting values are increasing linearly within each month, which might not be true. As explained before, the actual subseason pavement response data for each layer are not provided by the AASHTOWare® software, and therefore, an exact calculation (according to the MEPDG equations) could not be conducted for this project.
Source: FHWA.

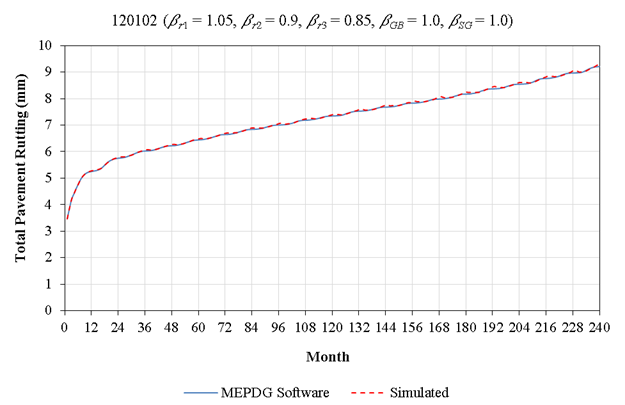

Figure 43. Chart. Comparison of simulated rutting calculations to ME software results for test section 120102 with β𝑟1 = 1.05, β𝑟2 = 0.9, β𝑟3 = 0.85, βGB = 1.0, βSG = 1.0.
Source: FHWA.
Figure 44. Chart. Comparison of simulated rutting calculations to ME software results for test section 120102 with β𝑟1 = 1.05, β𝑟2 = 1.15, β𝑟3 = 0.85, βGB = 1.0, βSG = 1.0.
Source: FHWA.

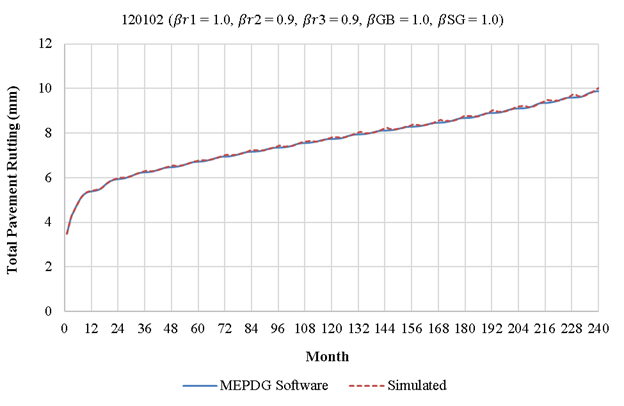

Figure 45. Chart. Comparison of simulated rutting calculations to ME software results for test section 120102 with β𝑟1 = 1.0, β𝑟2 = 0.9, β𝑟3 = 0.9, βGB = 1.0, βSG = 1.0.
Source: FHWA.

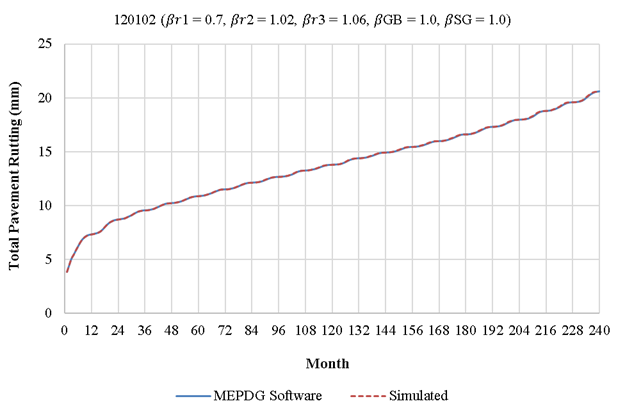

Figure 46. Chart. Comparison of simulated rutting calculations to ME software results for test section 120102 with β𝑟1 = 0.7, β𝑟2 = 1.02, β𝑟3 = 1.06, βGB = 1.0, βSG = 1.0.
Source: FHWA.

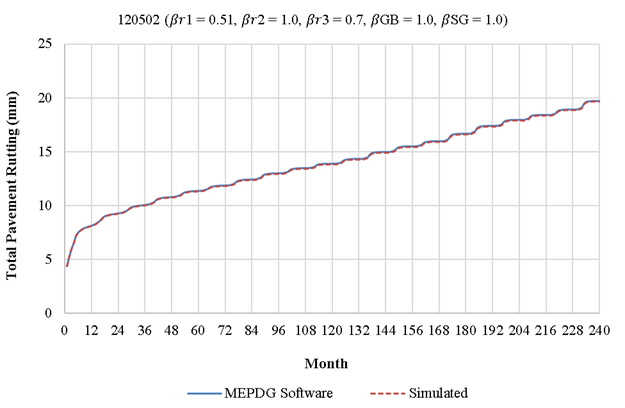

Figure 47. Chart. Comparison of simulated rutting calculations to ME software results for test section 120502 with β𝑟1 = 0.51, β𝑟2 = 1.0, β𝑟3 = 0.7, βGB = 1.0, βSG = 1.0.
Source: FHWA.
Figure 48. Chart. Comparison of simulated rutting calculations to ME software results for test section 120502 with β𝑟1 = 0.9, β𝑟2 = 1.0, β𝑟3 = 1.0, βGB = 1.0, βSG = 1.0.
Source: FHWA.

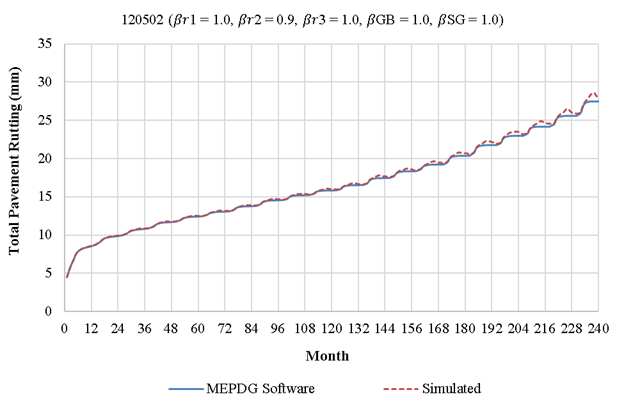

Figure 49. Chart. Comparison of simulated rutting calculations to ME software results for test section 120502 with β𝑟1 = 1.0, β𝑟2 = 0.9, β𝑟3 = 1.0, βGB = 1.0, βSG = 1.0.
Source: FHWA.

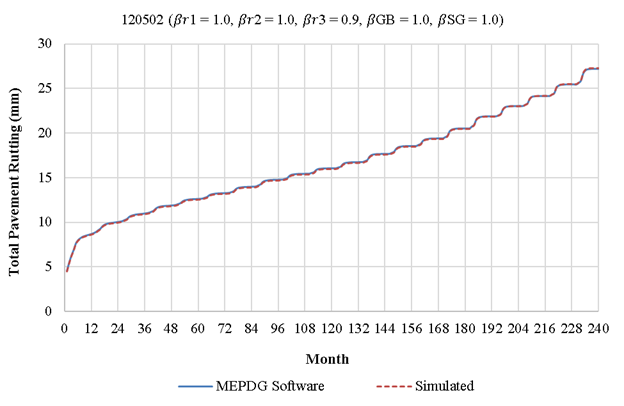

Figure 50. Chart. Comparison of simulated rutting calculations to ME software results for test section 120502 with β𝑟1 = 1.0, β𝑟2 = 1.0, β𝑟3 = 0.9, βGB = 1.0, βSG = 1.0.
Source: FHWA.

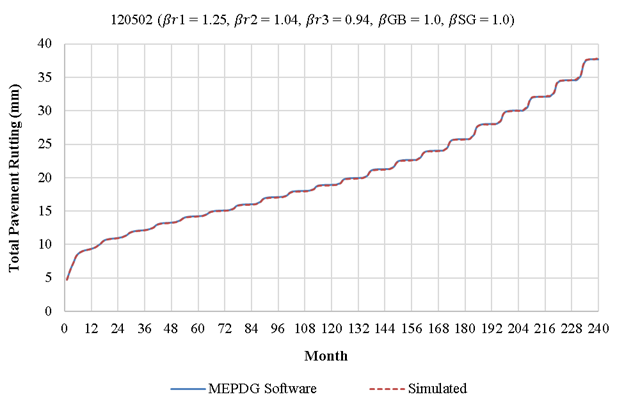

Figure 51. Chart. Comparison of simulated rutting calculations to ME software results for test section 120502 with β𝑟1 = 1.25, β𝑟2 = 1.04, β𝑟3 = 0.94, βGB = 1.0, βSG = 1.0.
Source: FHWA.

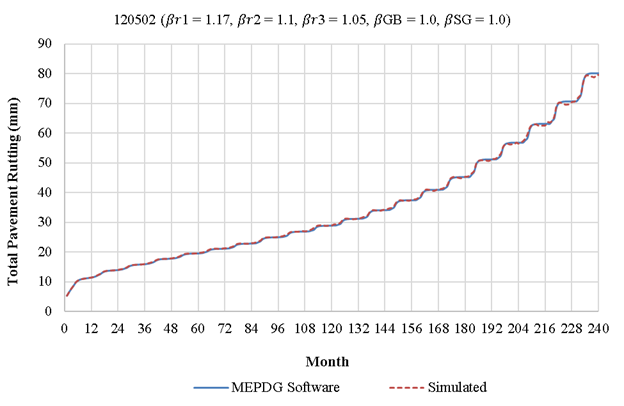

Figure 52. Chart. Comparison of simulated rutting calculations to ME software results for test section 120502 with β𝑟1 = 1.17, β𝑟2 = 1.1, β𝑟3 = 1.05, βGB = 1.0, βSG = 1.0.
Source: FHWA.

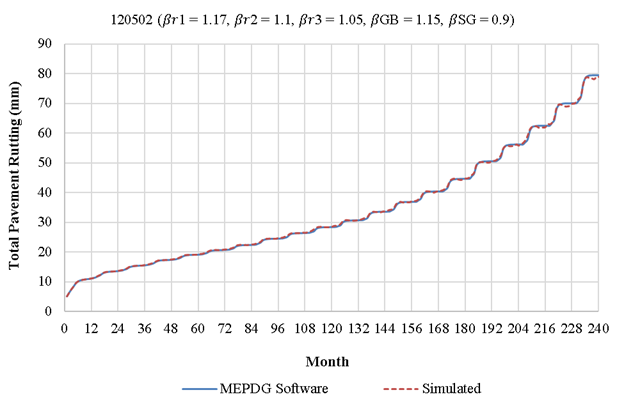

Figure 53. Chart. Comparison of simulated rutting calculations to ME software results for test section 120502 with β𝑟1 = 1.17, β𝑟2 = 1.1, β𝑟3 = 1.05, βGB = 1.15, βSG = 0.9.
