Insulation of Building Against Highway Noise

Worksheets

The following pages contain the worksheets listed below.

Figure 17. Worksheet No. 1 Calculation of Building Noise Reduction

Figure 18. Worksheet No. 2 Composite EWNR Calculation for Two Elements

Figure 19. Worksheet No. 3 Fuel Savings Due to Acoustical Modifications

Figure 20. Worksheet No. 4 Leq Calculation

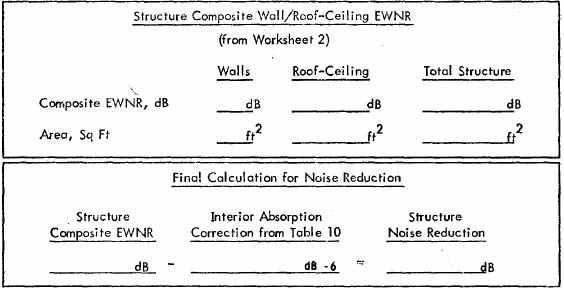

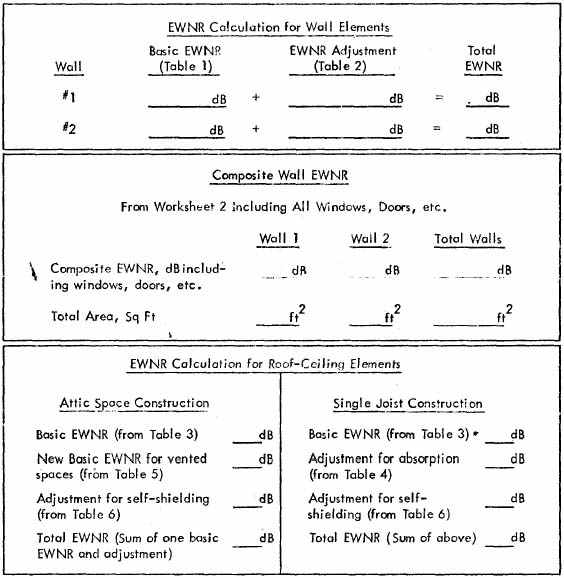

Figure 17. Worksheet No. 1 - Calculation of Building Noise Reduction
Figure 17. Worksheet No. 1 - Calculation of Building Noise Reduction
Figure 17. Worksheet No. 1 - Calculation of Building Noise Reduction

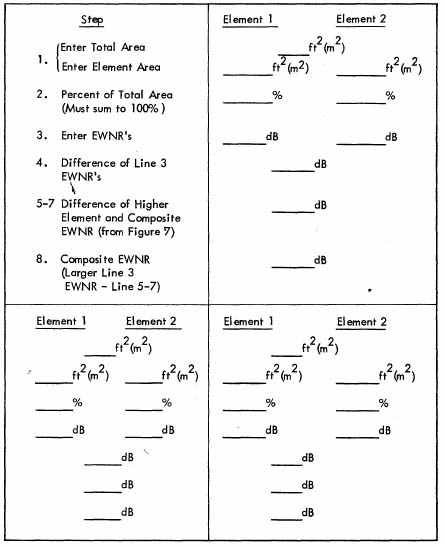

Figure 18. Worksheet No. 2 - Composite EWNR Calculation for Two Elements
Figure 18. Worksheet No. 2 - Composite EWNR Calculation for Two Elements

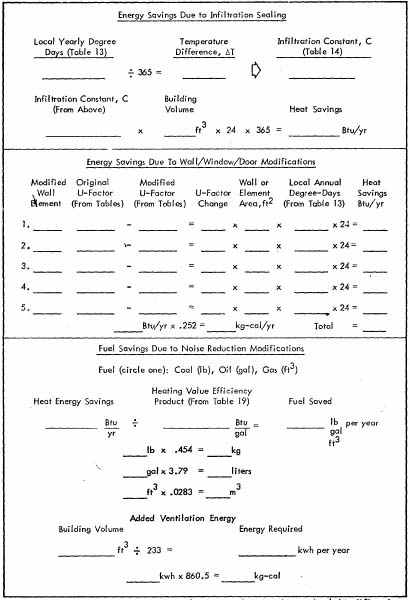

Figure 19. Worksheet No. 3 - Fuel Savings Due to Acoustical Modifications
Figure 19. Worksheet No. 3 - Fuel Savings Due to Acoustical Modifications

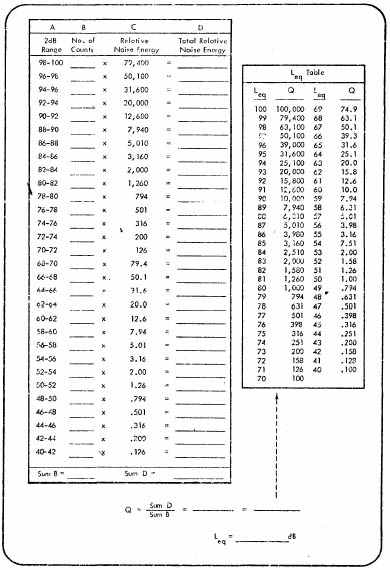

Figure 20. Worksheet No. 4 - Leq Calculation
Figure 20. Worksheet No. 4 - Leq Calculation
