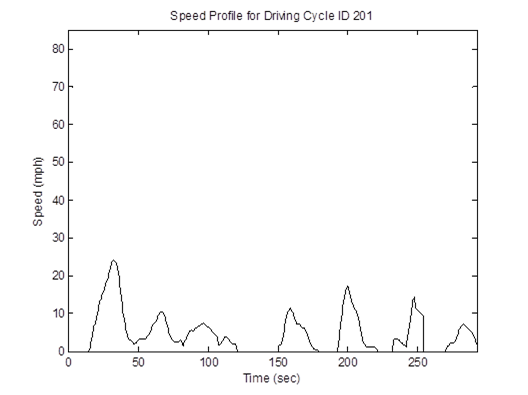

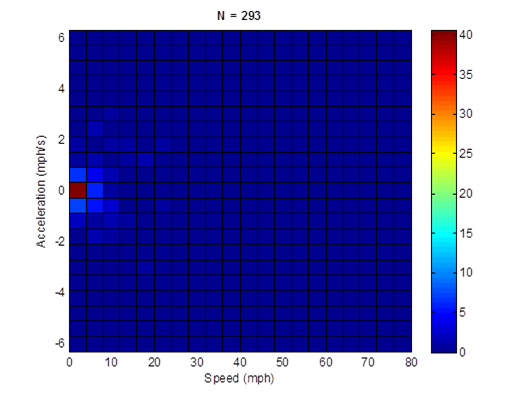

Figure E-1. MD 5mph non-freeway cycle (length = 293 seconds; average speed = 4.6 mph)

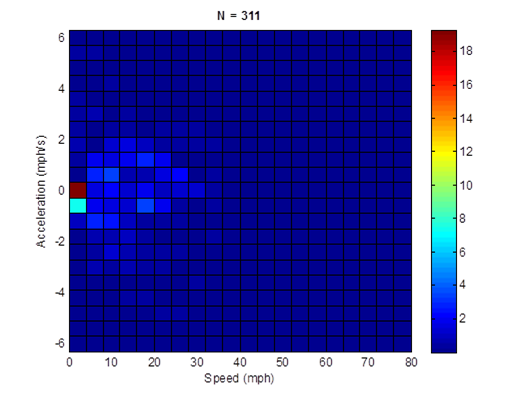

Figure E-2. MD 10mph non-freeway cycle (length = 311 seconds; average speed = 10.7 mph)

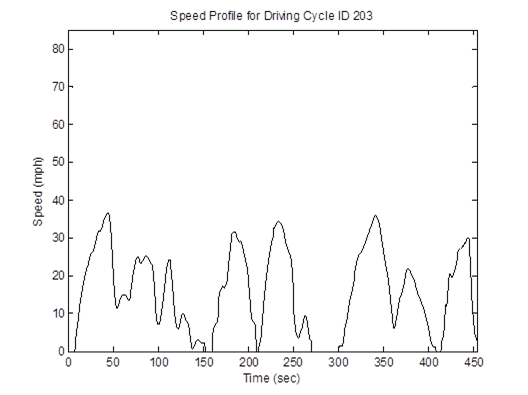

Figure E-3. MD 15mph non-freeway cycle (length = 454 seconds; average speed = 15.6 mph)

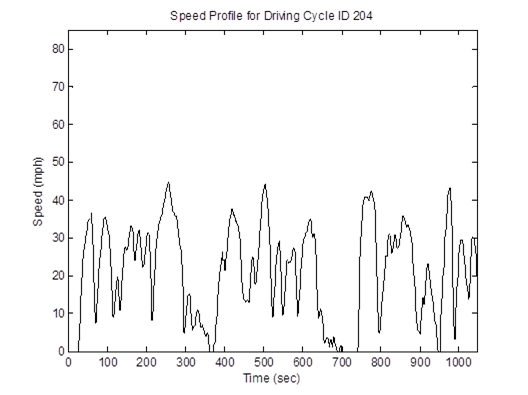

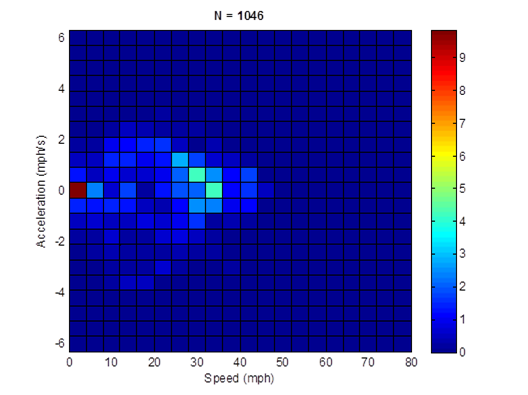

Figure E-4. MD 20mph non-freeway cycle (length = 1,046 seconds; average speed = 20.8 mph)

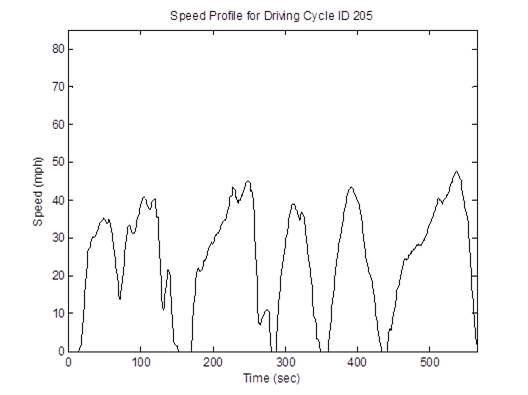

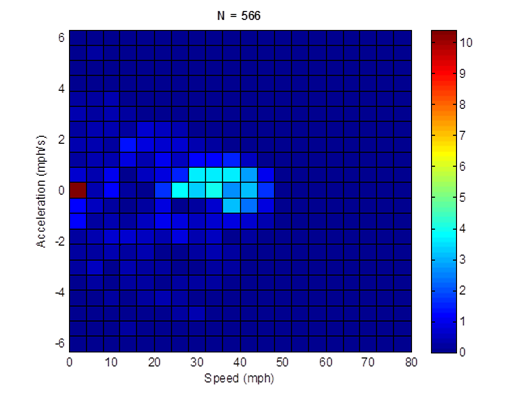

Figure E-5. MD 25mph non-freeway cycle (length = 566 seconds; average speed = 24.5 mph)

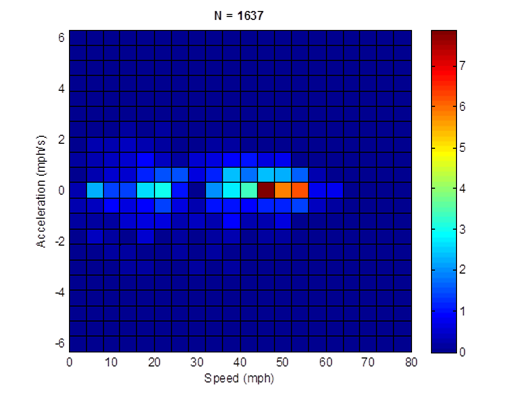

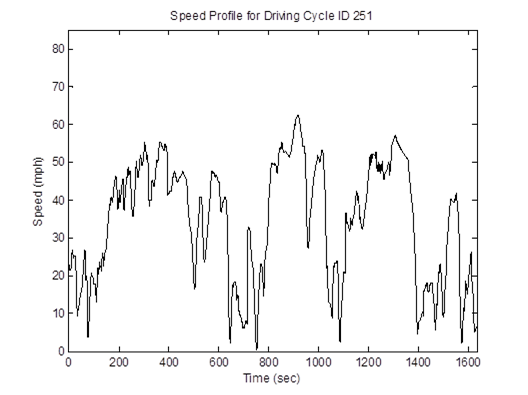

Figure E-6. MD 30mph freeway cycle (length = 1,637 seconds; average speed = 34.4 mph)

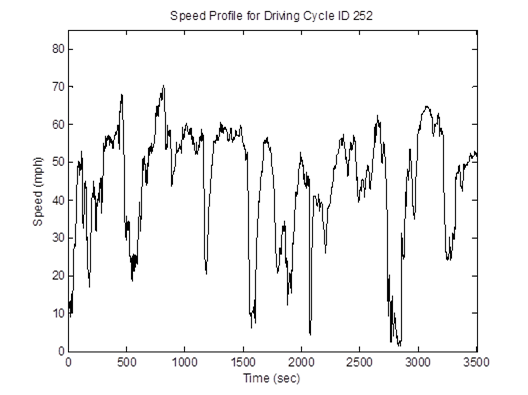

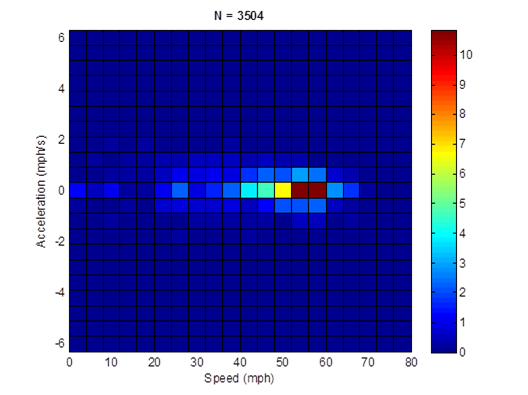

Figure E-7. MD 40mph freeway cycle (length = 3,504 seconds; average speed = 44.5 mph)

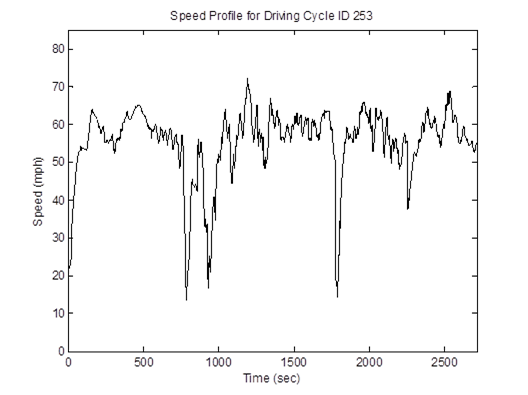

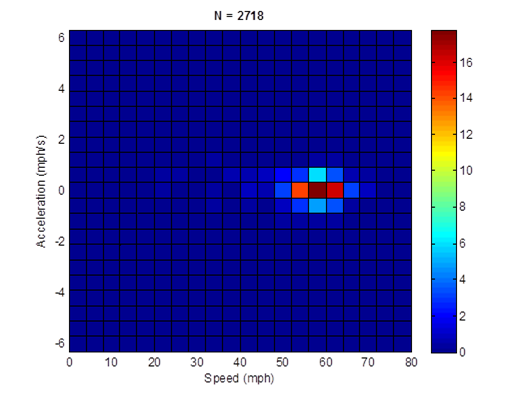

Figure E-8. MD 50mph freeway cycle (length = 2,718 seconds; average speed = 55.4 mph)

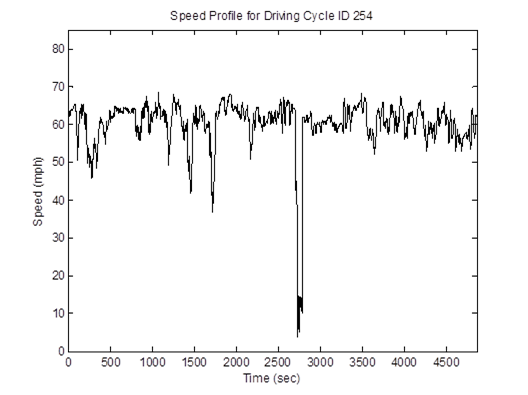

Figure E-9. MD 60mph non-freeway cycle (length = 4,866 seconds; average speed = 60.4 mph)

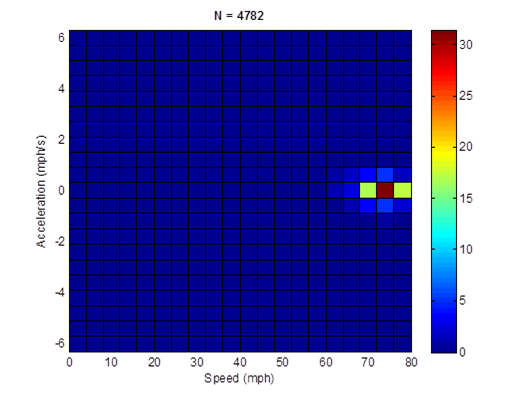

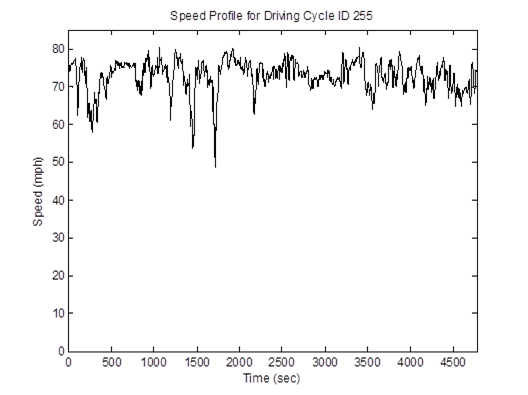

Figure E-10. MD high speed freeway cycle (length = 4,782 seconds; average speed = 72.8 mph)

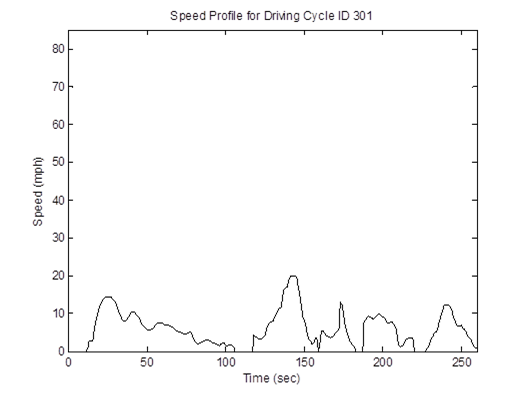

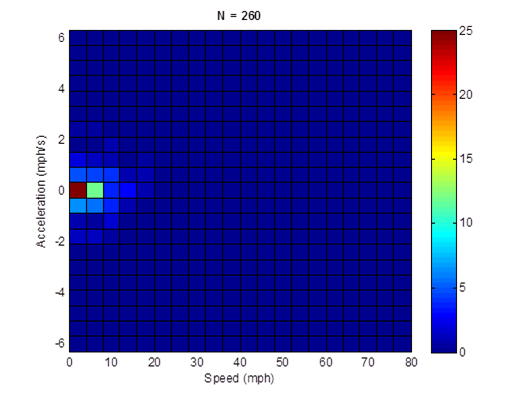

Figure E-11. HD 5mph non-freeway cycle (length = 260 seconds; average speed = 5.8 mph)

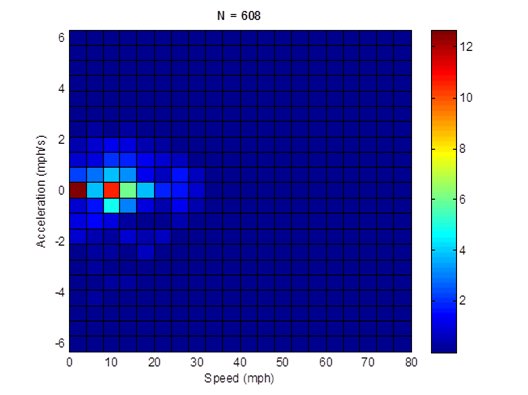

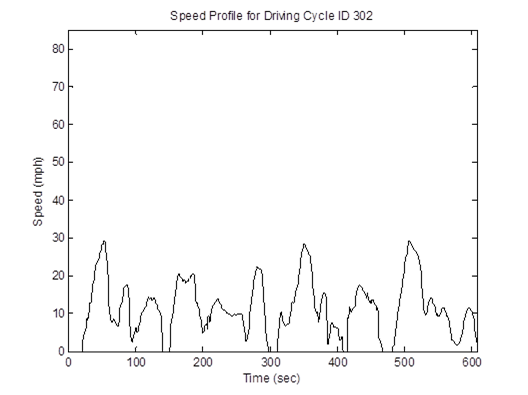

Figure E-12. HD 10mph non-freeway cycle (length = 608 seconds; average speed = 11.2 mph)

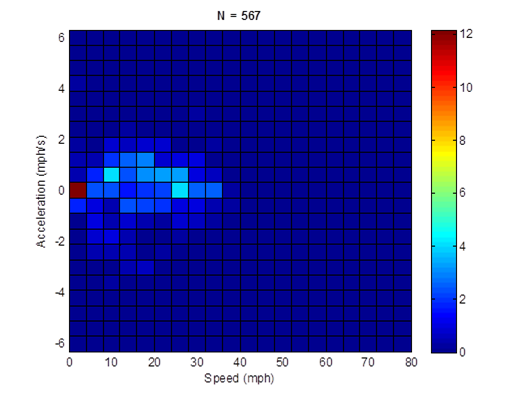

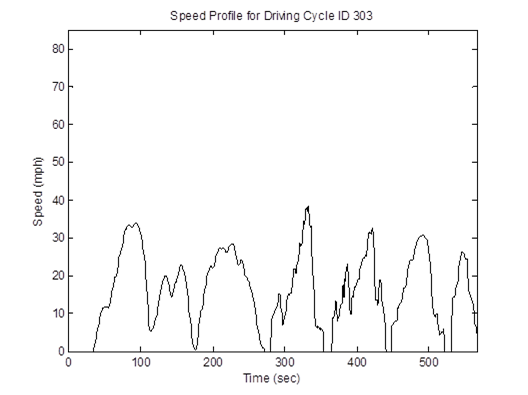

Figure E-13. HD 15mph non-freeway cycle (length = 567 seconds; average speed = 15.6 mph)

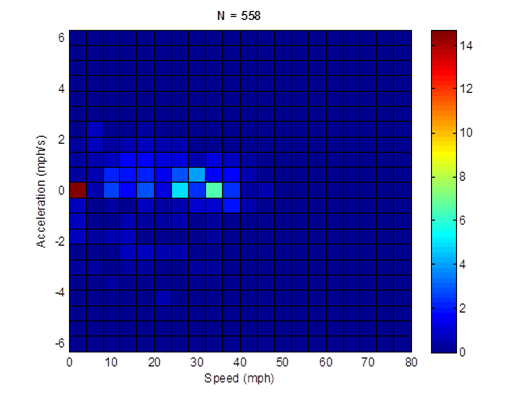

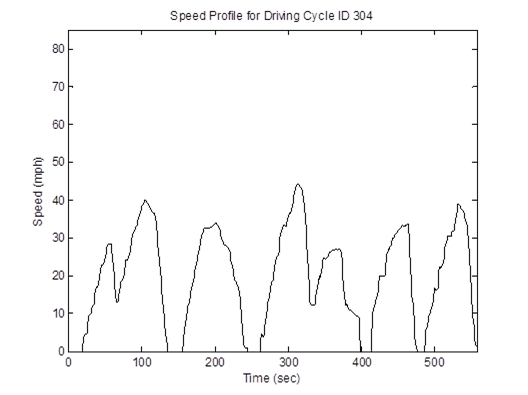

Figure E-14. HD 20mph non-freeway cycle (length = 558 seconds; average speed = 19.4 mph)

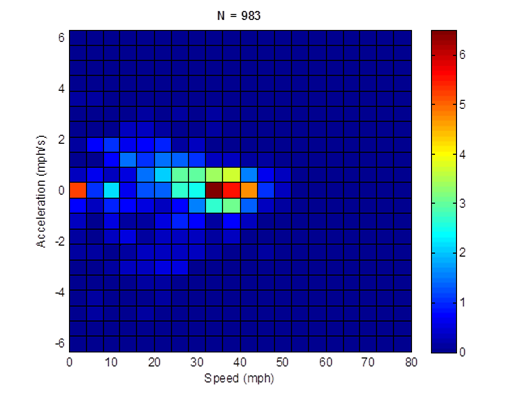

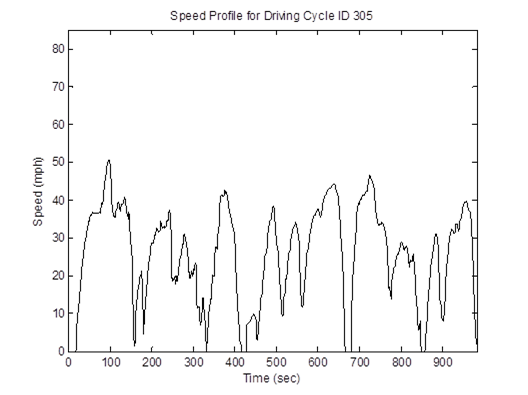

Figure E-15. HD 25mph non-freeway cycle (length = 983 seconds; average speed = 25.6 mph)

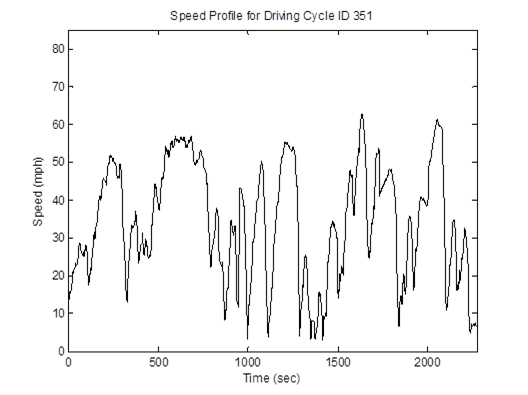

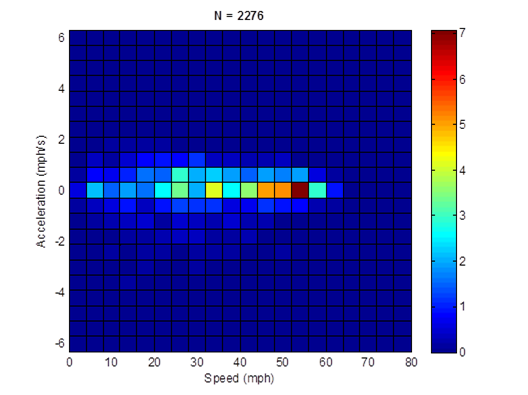

Figure E-16. HD 30mph freeway cycle (length = 2,276 seconds; average speed = 34.3 mph)

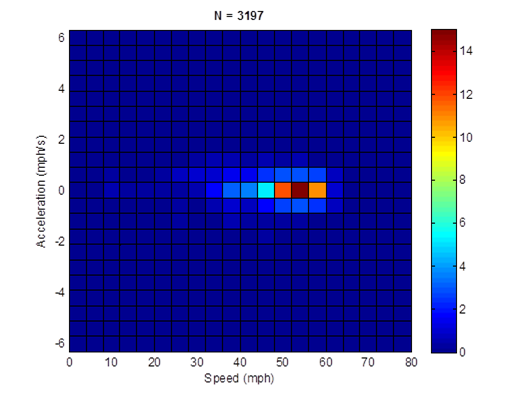

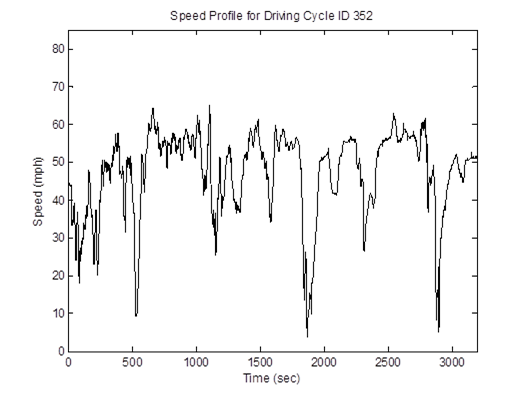

Figure E-17. HD 40mph freeway cycle (length = 3,197 seconds; average speed = 47.1 mph)

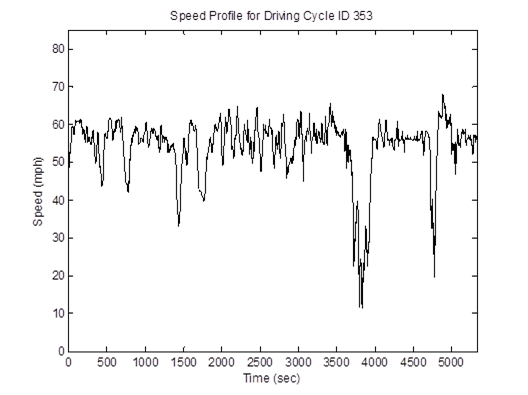

Figure E-18. HD 50mph freeway cycle (length = 5,333 seconds; average speed = 54.2 mph)

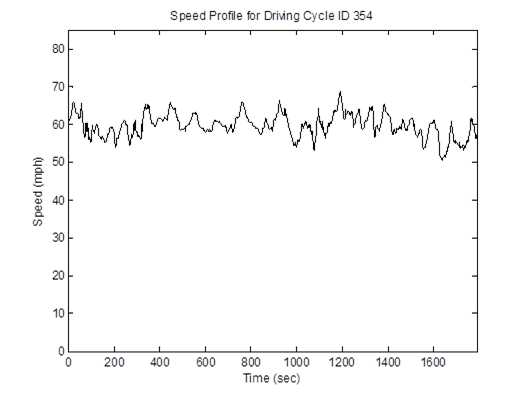

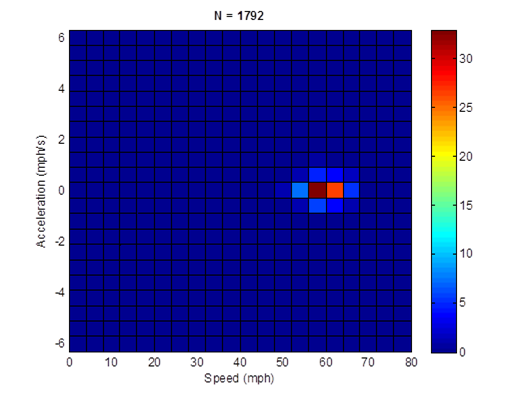

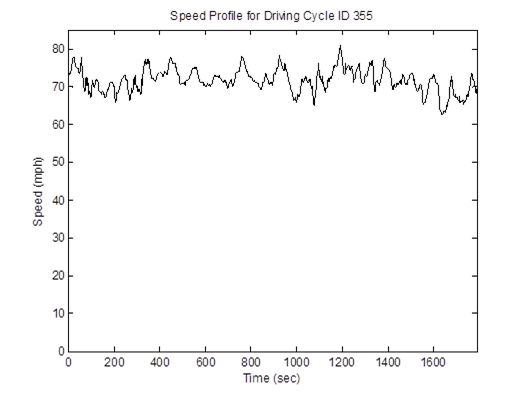

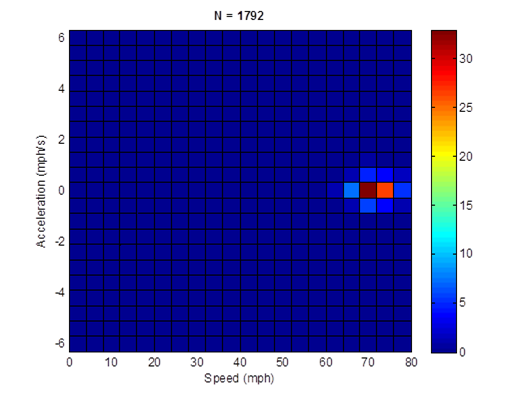

Figure E-19. HD 60mph freeway cycle (length = 1,792 seconds; average speed = 59.4 mph)
