Publication Number:  FHWA-HRT-17-020    Date:  February 2017
Publication Number: FHWA-HRT-17-020
Date: February 2017



Optimization of Rib-to-Deck Welds for Steel Orthotropic Bridge Decks

APPENDIX A. SECTIONING OF PANELS INTO SPECIMENS

Figure 49 through figure 62 in this appendix show how individual panels were cut into specimens for the first series of panels that were machined at TFHRC. In the later stages of the project, the fabricator was paid to section the panels with a bandsaw, and it is presumed that specimens were ordered sequentially along the length of the panel.

Click for description
Units = Inches

Figure 49. Illustration. GM8 series panel.



Click for description
Units = Inches.

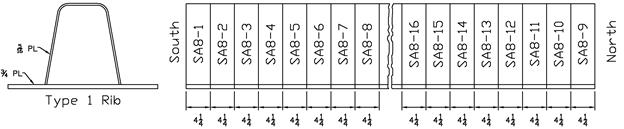

Figure 50. Illustration. SA8 series panel.



Click for description
Units = Inches.

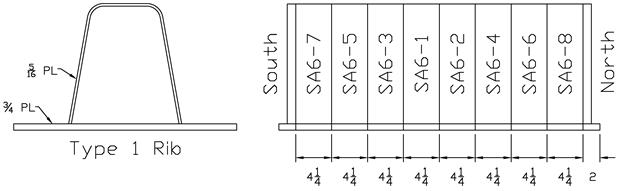

Figure 51. Illustration. SA6 series panel.



Click for description
Units = Inches.

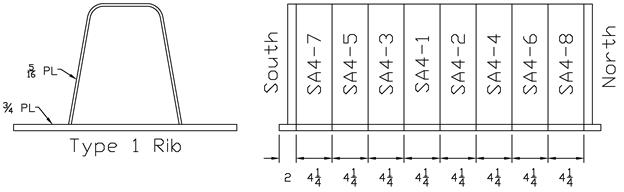

Figure 52. Illustration. SA4 series panel.



Click for description
Units = Inches.

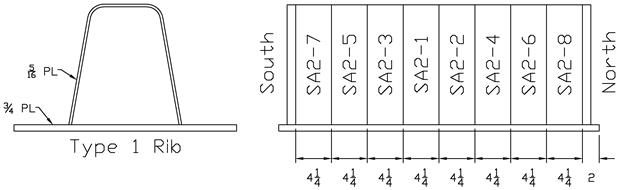

Figure 53. Illustration. SA2 series panel.



Click for description
Units = Inches.

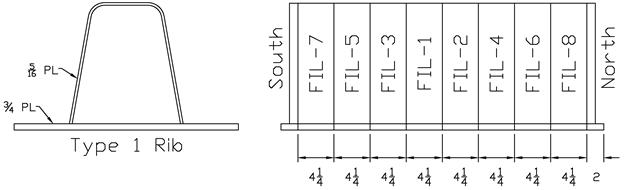

Figure 54. Illustration. FIL series panel.



Click for description
Units = Inches.

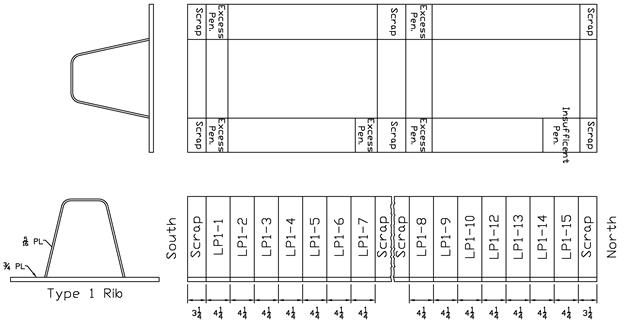

Figure 55. Illustration. LP1 series panel.



Click for description
Units = Inches.

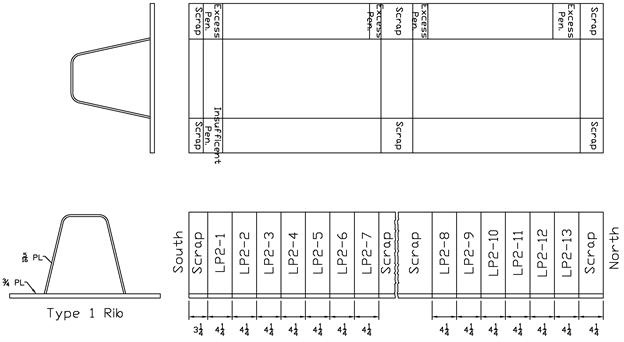

Figure 56. Illustration. LP2 series panel.



Click for description
Units = Inches.

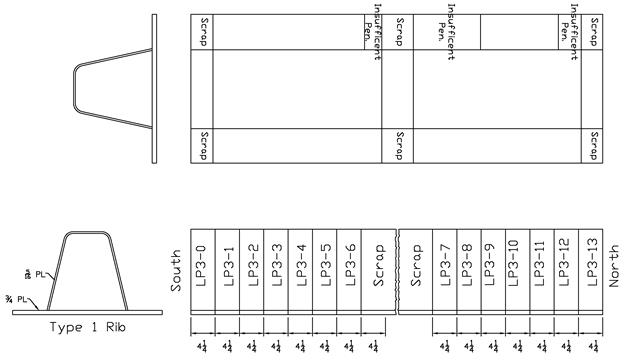

Figure 57. Illustration. LP3 series panel.



Click for description
Units = Inches.

Figure 58. Illustration. OB series panel.



Click for description
Units = Inches.

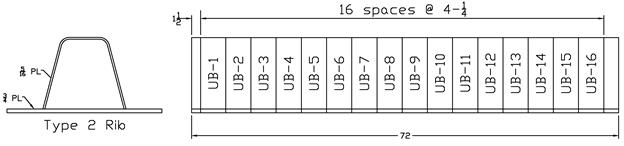

Figure 59. Illustration. UB series panel.



Click for description
Units = Inches.

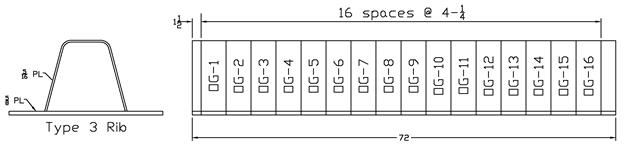

Figure 60. Illustration. OG1 series panel.



Click for description
Units = Inches.

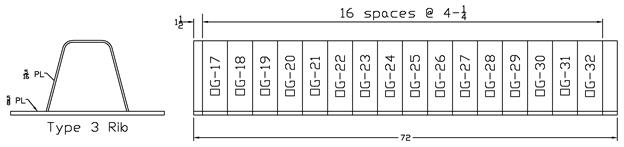

Figure 61. Illustration. OG2 series panel.



Click for description
Units = Inches.

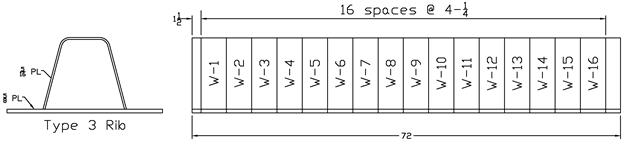

Figure 62. Illustration. W series panel.
