To see the current value of a cell, simply hold the mouse pointer over the cell. Once the user has specified values for all the cells in the Noise Limit Criteria dialogue box, these criteria can be saved in a criteria file ([name].cri) by clicking on the "Save" command button. The user will be prompted to give the criteria file a name. These criteria can thereafter be loaded into any case by clicking on the "Open" command button.
The user returns to the Noise Limit Criteria dialogue box by clicking "Ok", and returns to the case by clicking "Ok" again.

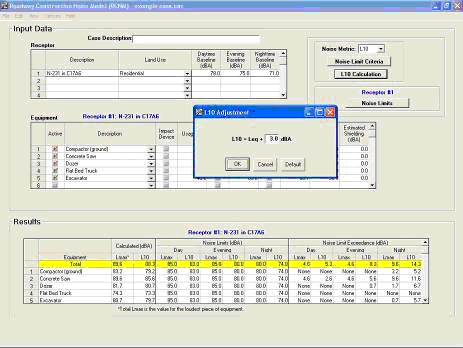

By clicking on the "L10 Calculation" command button, the user can specify the adjustment factor used to calculate L10, as in Figure 17. By clicking the "Default" command button, the user automatically calls for an adjustment factor of 3 dBA, a value empirically derived from extensive CA/T Project data [2].
Figure 17. L10 Adjustment dialogue box

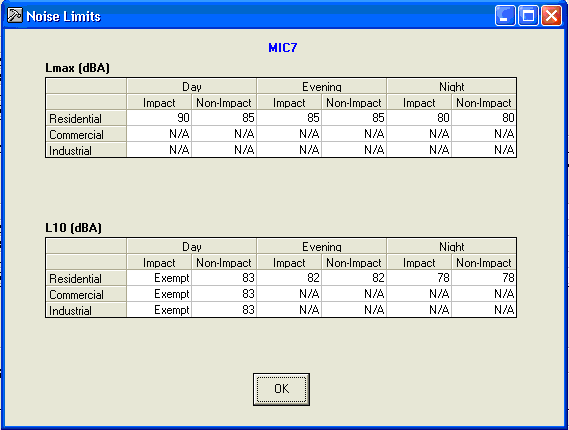

The "Noise Limits" command button opens a display window that looks exactly like the "Noise Limit Criteria" dialogue box, except that it is not editable, and the only button in the opened window is "Ok". The values in the cells are based on the criteria set in the Noise Limit Criteria window and the baseline levels for the selected receiver, as in Figure 18. (If a receiver is not selected, the dialogue box is unavailable for viewing.)
Figure 18. Noise Limits display window
Again, these limits may be changed by the user through the Noise Limit Criteria data entry window.
