Precast Bent System for High Seismic Regions: Laboratory Tests of Column-to-Drilled Shaft Socket Connections

APPENDIX A: SPECIMEN CONSTRUCTION DRAWINGS

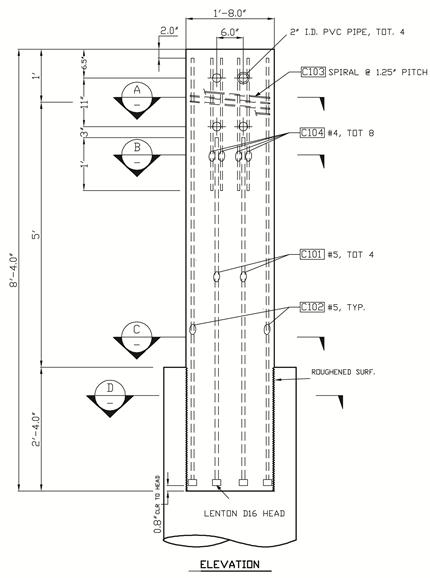

Column reinforcing details of specimens DS-1 and DS-2.

Figure 77. Diagram. Column elevation.

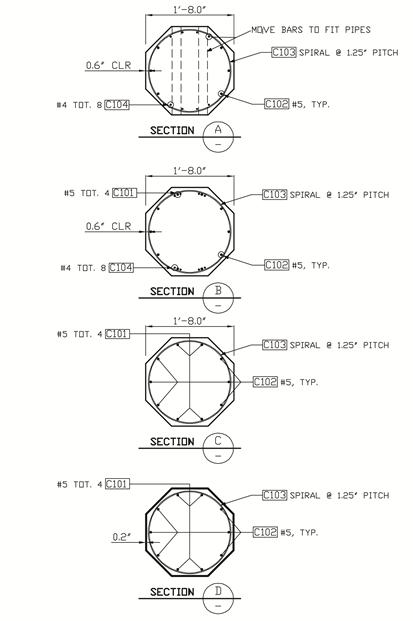

Column sections with reinforcing details of specimens DS-1 and DS-2.

Figure 78. Diagram. Column sections.

Reinforcing details of the shaft and base of specimens DS-1 and DS-2 in the longitudinal section.

Figure 79. Diagram. Shaft and base - longitudinal section.

Reinforcing details of the shaft and base of specimens DS-1 and DS-2 in the transverse section.

80. Diagram. Shaft and base - transverse section.

Reinforcing details of the shaft and base of specimens DS-1 and DS-2 in plan view.

Figure 81. Diagram. Shaft and base reinforcement arrangement.
